Assembling objects in CloudCompare

Posted: Mon Apr 14, 2025 4:56 am
by Guitar Quackery
Hello all,

I just started using CloudCompare to view 3D scans of guitars and guitar parts.

I was hoping to be able to import separate guitar parts into a project and then move and rotate each guitar part separately so that I can assemble a guitar in 3D space.

Can this be done in CloudCompare?

Thanks.

Re: Assembling objects in CloudCompare

Posted: Wed Apr 16, 2025 2:48 am
by Guitar Quackery

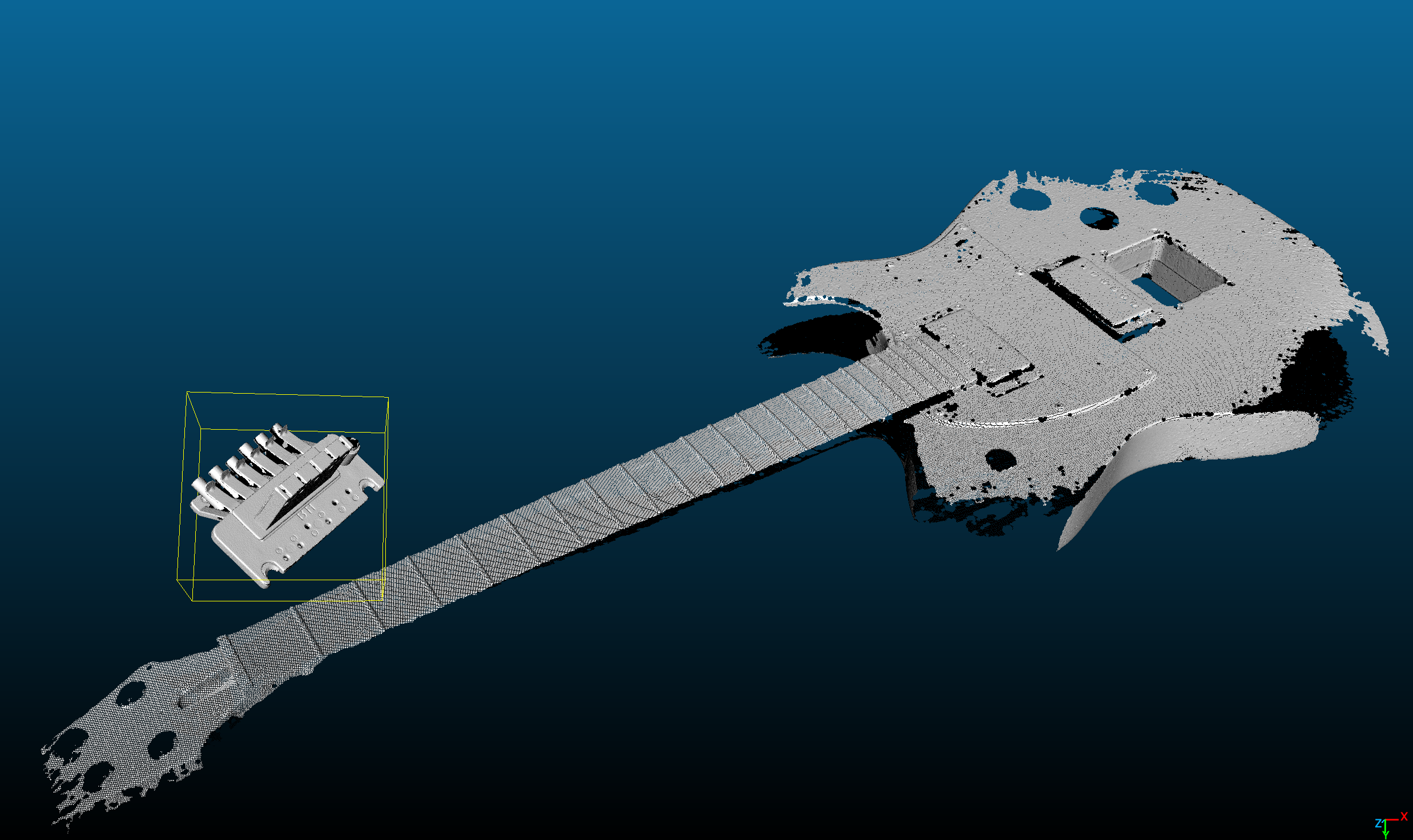

Here is a screen shot of what I am trying to do.

There is a point could scan of a guitar and a scan of the guitar bridge (in the yellow box).

Screenshot 2025-04-15 at 10.45.32 PM.png
Screenshot 2025-04-15 at 10.45.32 PM.png (1010.75 KiB) Viewed 698 times
Is it possible to move the bridge in the correct place on the guitar?

Thanks.

Re: Assembling objects in CloudCompare

Posted: Thu Apr 17, 2025 7:51 am
by daniel
Well, yes, but mostly manually. Use the 'Edit > Translate/rotate' tool.

See https://www.cloudcompare.org/doc/wiki/i ... ation_Tool

I don't think registration/alignement tools will be very useful (apart maybe for the point pair picking tool... see https://www.cloudcompare.org/doc/wiki/i ... gistration)

Re: Assembling objects in CloudCompare

Posted: Thu Apr 17, 2025 5:01 pm
by Guitar Quackery
Thank you very much. This is in fact very helpful.

Re: Assembling objects in CloudCompare

Posted: Tue Apr 22, 2025 2:08 pm
by Zizelind
Yeah, I’ve done something similar with CloudCompare when working on scanned mechanical parts. You can definitely move and rotate separate pieces, but it’s a bit clunky. I had to import each part individually, then use the Translate/Rotate tool (it’s that little cube with arrows) to position everything. Just make sure you're selecting the right part in the DB Tree before adjusting it, took me a few tries to get used to that. It’s not the smoothest workflow, but it gets the job done.
